BVB-12DF-16 - Two Piece Direct Mounted Flanged Ball Valve

SPECIFICATIONS
Available Material	1.4408/1.4308/1.0619
Working Pressure	DIN PN16
Ball Bore	Full
End Connection	EN1092-1
Size Range	1/2" to 6 "
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:PTFE/PTFE+25%GL/PTFE+50%SS/TFM1600/TFM4215

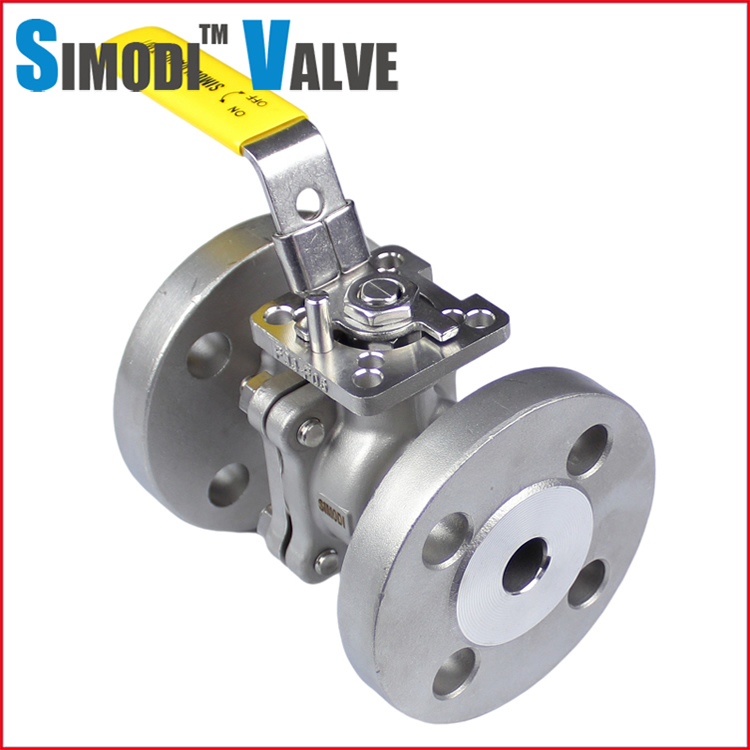

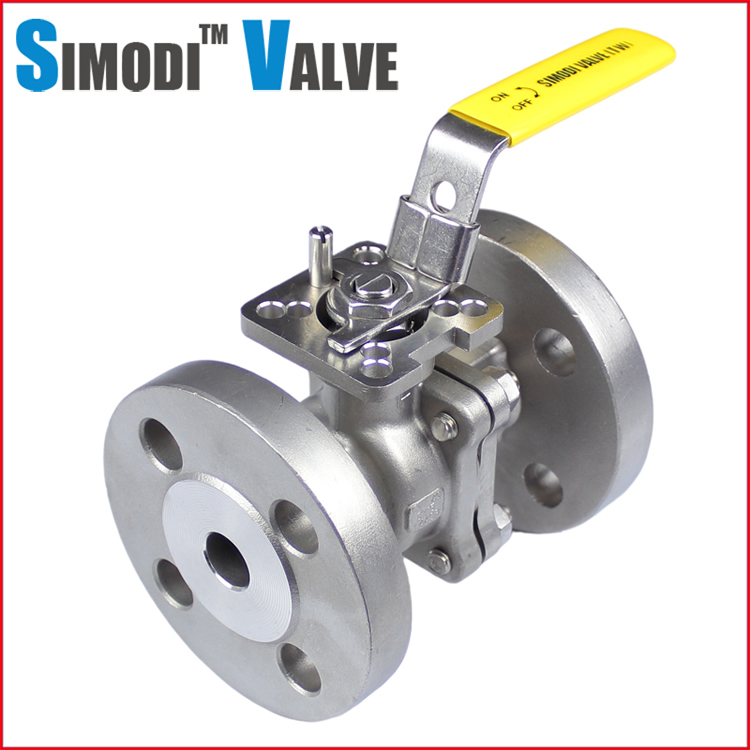

Two Piece Direct Mounted Flanged Ball Valve

German standard flange ball valve, which supports direct installation of pneumatic and electric actuators.

Applicable media: Water, oil, gas, and solutions of weak acids and weak bases.

undefined

DIN standard flanged ball valve

Two-piece direct-mounted platform flanged ball valve

undefined

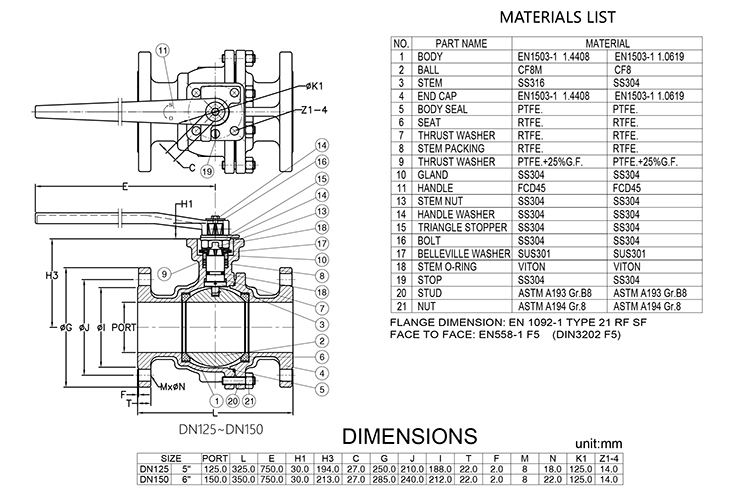

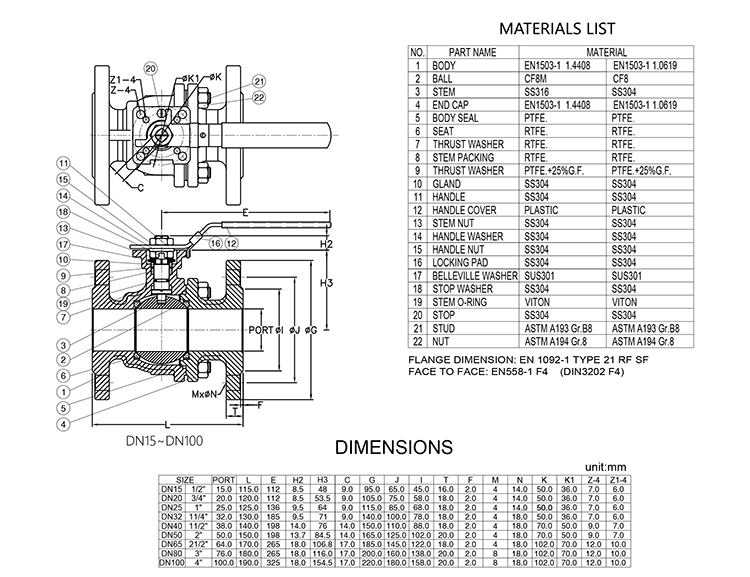

BVB-12DF-PN16 Two Piece Direct Mounted Flanged Ball Valve

SPECIFICATIONS
*Working Pressure: 1/2”~6” PN16
*Temperature Range: -15～150℃(PTFE)
*Antistatic Device
*Blow-Out-Proof Stem Design
*Investment Casting Solution Treatment
*ISO5211 Direct-Mounting of Actuators of Valves Design
*Design Standard：EN12516-1
*Face to Face：EN558-1 F4/F5(DIN 3202 F4/F5)
*Flange End:EN1092-1 TYPE 21 PN16 RF
*Full port

Two-piece direct-mounted platform flanged ball valve
